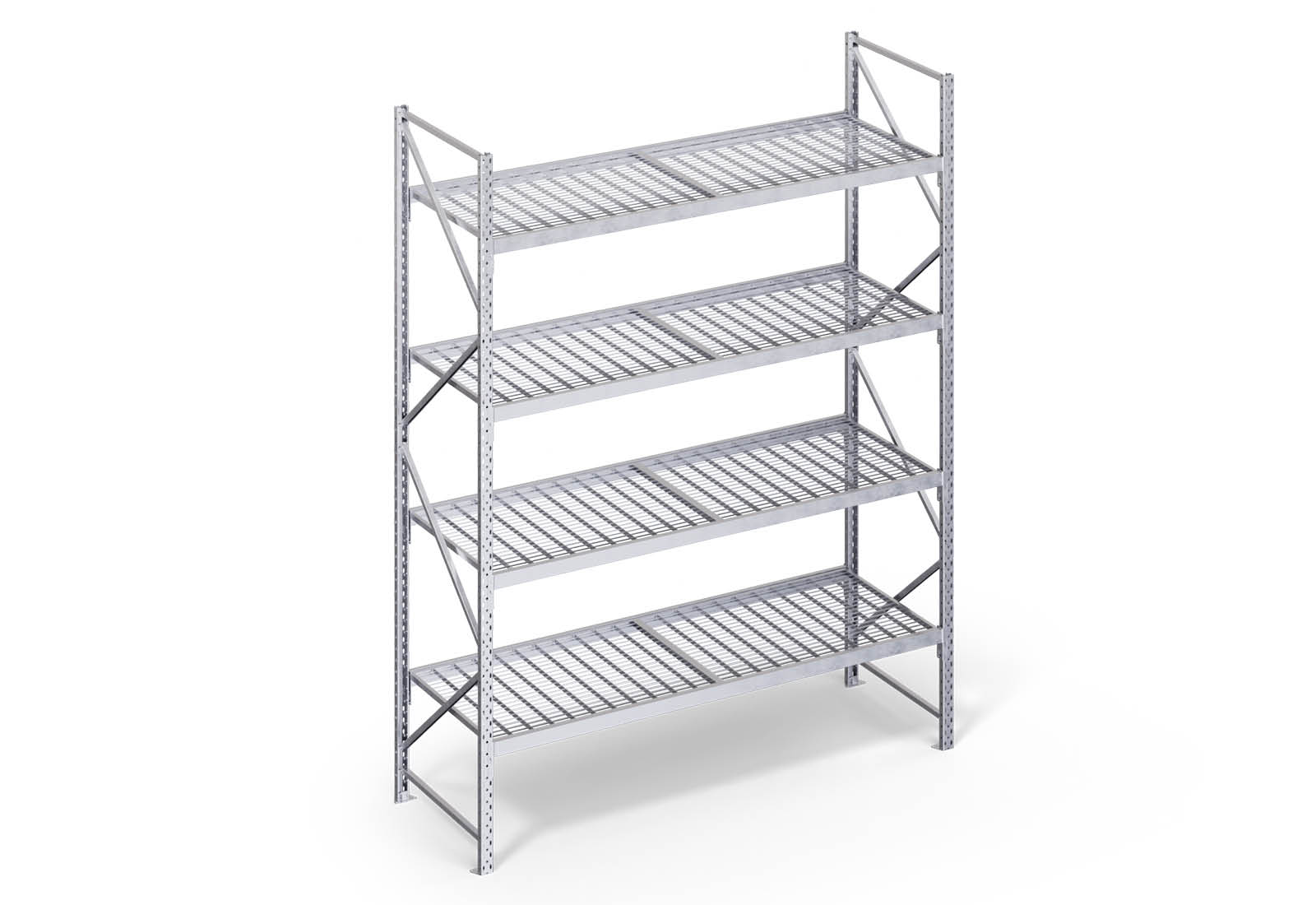

2,3 m Storage rack LR2000 / hot-dip galvanized / 80 cm deep / 2 m high / 4 levels / steel grating deck

Long span racks from TOPREGAL: high load capacity, flexible assembly

The storage racks from TOPREGAL meet every requirement thanks to their stability and versatility. Our long span racks impress with a bay load (total load evenly distributed between 2 uprights) of 2.000 kg and a shelf load of 500 kg. This allows you to store different types of stock as well as bulky and heavy items with ease.
In addition, the TOPREGAL storage racks have been tested for stability, rigidity and load capacity in accordance with the stringent German safety standard DGUV 208-061.
Assembly takes just a few steps. Thanks to the simple plug-in system, you can hook the beams in individually at increments of 50 mm and secure them with locking pins. The modular construction system also allows your shelving to be extended at any time in width and in the number of levels.

Weather-resistant thanks to hot-dip galvanising

The hot-dip galvanised storage rack LR2000 impresses not only with its high load capacity, but also with its high-quality surface finish. Thanks to this finish, it can be installed not only indoors, such as in warehouses or production facilities, but also outdoors and in cold-storage rooms.

The optimum decking for your application

The steel grating deck consists of individual modules of 110 cm or 220 cm each. The shelf is fixed and stabilised by inserting it into the stepped rack beam. Its load capacity with evenly distributed loads is max. 500 kg per steel grating deck, making it ideal for storing hazardous substances or liquids. The ability to see the stored goods from below through the steel grating deck can also be helpful in everyday warehouse operations.

Practical dimensions, easy assembly

This warehouse rack impresses with its height of 2 m, depth of 80 cm and width of 2,3 m. Each of the 4 levels has a maximum load of 500 kg; the maximum load between two uprights (the bay load) of 2.000 kg must not be exceeded. These figures always refer to evenly distributed loads on the racks. Thanks to the plug-in system, assembly is quick and straightforward. The wide-span shelving from TOPREGAL is also available with a comprehensive range of individual parts and accessories, such as rack uprights, beams, magnetic strips and storage bins.

All assembly material required is included in the delivery.
