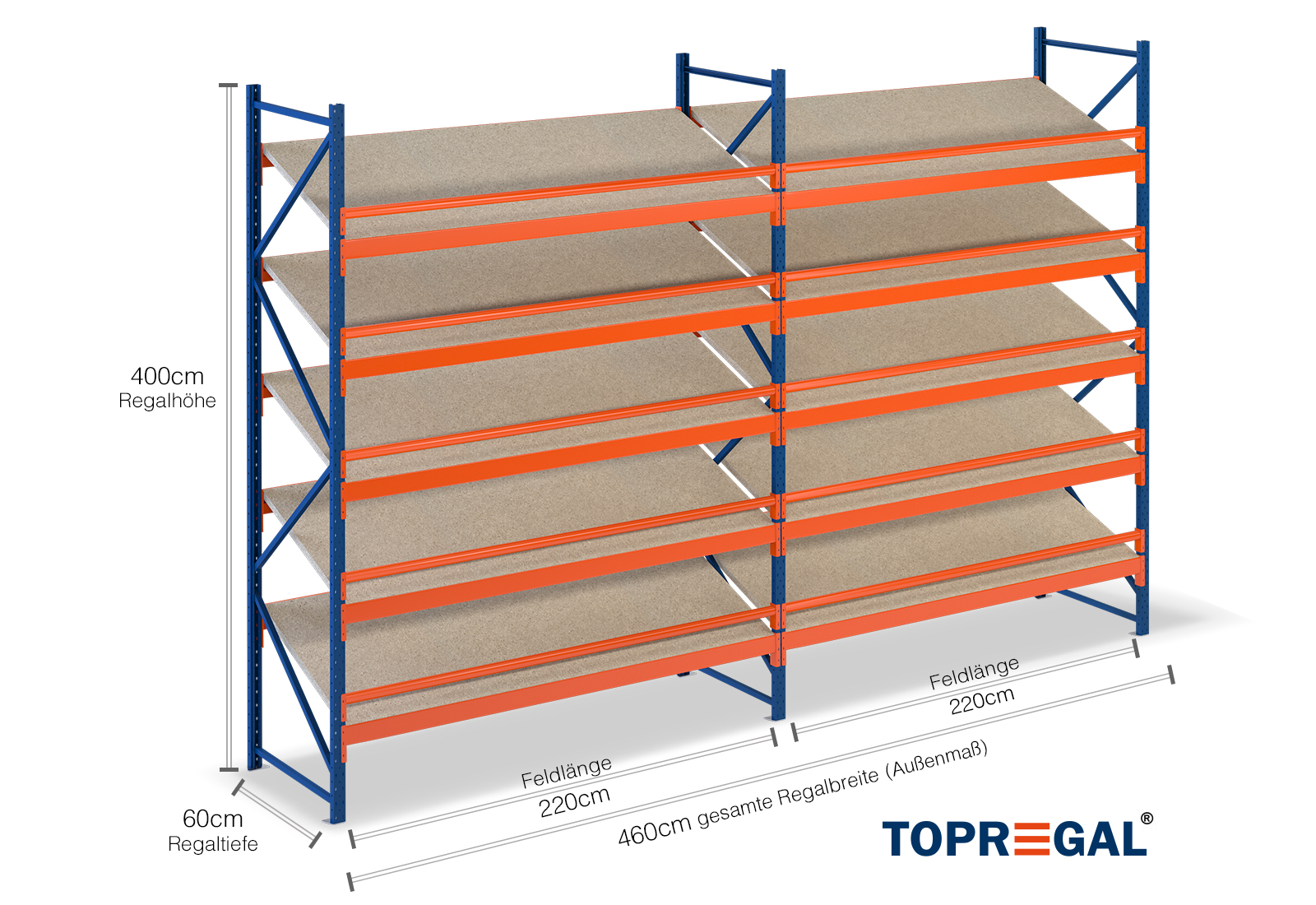

4,6 m Kanban rack SR1500 / 60 cm deep / 4 m high / 5 levels / wooden decking
- High flexibility thanks to the modular system
- Compatible with other rack types, such as tyre and storage racks
- Fast picking thanks to good visibility of the goods
- Enables visible storage of small parts in combination with visible storage bins
- Straightforward and fast assembly in just a few steps
- High flexibility thanks to the modular system
- Compatible with other rack types, such as tyre and storage racks
- Fast picking thanks to good visibility of the goods
- Enables visible storage of small parts in combination with visible storage bins
- Straightforward and fast assembly in just a few steps
-
ModelSR1500
-
Number of levels5
-
Rack layerWood
-
Width4,600 mm
-
Depth600 mm
-
Height4,000 mm
-
Max. load per field1,500 kg
-
Maximum load per level300 kg
-
Range of applicationIndoor
-
SurfacePainted
- 3 x Uprights, 4 m high / 60 cm deep, with a bay load of 1.500 kg
- 20 x Rack beams, 220 cm wide, with a shelf load of 300 kg
- 10 x Round beams, 220 cm wide
- 10 x Shelves, 220 cm x 60 cm, 25 mm thick
- All accessories, including screws, locking pins and nuts, and all assembly materials required for installation
- Load signs in accordance with the stringent German safety standard DGUV 208-061
- Assembly instructions
- 5-year warranty
The TOPREGAL sloping-shelf rack impresses with its attractive appearance, easy assembly and durable, stable construction. This rack type also offers excellent flexibility. It can be expanded in width at any time, and the number of bays in this fully preconfigured sloping-shelf rack is 2. The 5 sloping levels can also be individually hung at different heights in increments of 50 mm thanks to the practical stepped beams. This setting can be adjusted later as well. The individual beams are hung in the uprights using the simple plug-in system and secured against accidental dislodging with safety pins. A round beam is fitted at the front of each level as fall protection.
The benefits of sloping shelves are obvious
This arrangement makes small parts visible during storage. Warehouse employees can quickly gain an overview of stock and efficiently remove stored items from the rack, as the items move forwards from the rear. This ensures optimum use of storage space.
This sloping-shelf rack has a shelf load of up to 300 kg. The bay load, which corresponds to the total load evenly distributed between two uprights, is 1.500 kg. The shelves are made of high-quality wood. With its dimensions of 4,6 m x 60 cm x 4 m and 5 levels, this sloping-shelf rack has everything you need to make everyday warehouse work easier.
All accessories such as screws, nuts, safety pins and all mounting material required for assembly are included in the price and delivery.
-
ModelSR1500
-
Number of levels5
-
Rack layerWood
-
Width4,600 mm
-
Depth600 mm
-
Height4,000 mm
-
Max. load per field1,500 kg
-
Maximum load per level300 kg
-
Range of applicationIndoor
-
SurfacePainted
- 3 x upright 4 m high / 60 cm deep with a unit load capacity of 1.500 kg
- 20 x beam 220 cm wide with a compartment load capacity of 300 kg
- 10 x round beam 220 cm wide
- 10 x shelf 220 cm x 60 cm, 25 mm thick
- All accessories such as screws, safety pins, nuts and all material required for assembly are included
- Load capacity labels in accordance with German DGUV 208-061
- Assembly instructions
- 5 Years warranty
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (german DGUV Rule 208-061) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
